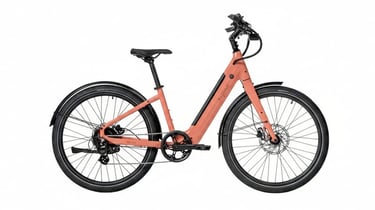

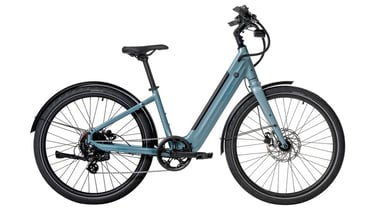

Aima Key West
Features & Benefits
- Lightweight Step-Thru Aluminum frame, integral Smooth Welding
- UL Certified, Reliable Pedal Assist System, provided by Bafang
- Powerful Rear Hub Motor, 48V, 500W, Max Torque 60Nm
- Lithium-ion Battery, 48V, 12.8Ah (614Wh)
- Torque Sensor
- Integrated Driving Lights & Blinkers Turn Signals
- Bluetooth Connected Navigation System
- Shimano Drivetrain
- Tektro E-Brakes, Hydraulic, 203mm Rotors
- Full Length Fenders included
Pedal Assist System
Motor: Bafang G210 48V Brushless Rear Hub, 500W, 36H*12G
Battery: Bafang BT F304, Semi-Integrated, 12.8Ah (614Wh) Lithium-ion
Display: Bafang DP C010, Bluetooth Connected, Color TFT LCD, Buit-in Navigation System
Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups
Throttle: On Demand Thumb Press Button
Control Pad: Power / PAS level
Driving Lights: Blinkers Turn Signal Lights / Electronic Horn
Charger: AIMA 48V 3A Fast Charge
Estimated Range
Range varies significantly depending of motor power and battery capacity, and of course, depending on the selected power assist level. Other factors influencing range are nature of terrain, wind speed, gradient, riding style, total rider and cargo weight, tire pressure and temperature.
AIMA’s software provides the following estimated range figures based on a fully charged, brand new battery:
- Assist Level 1: 90 km
- Assist Level 2: 80 km
- Assist Level 3: 70 km
- Assist Level 4: 60 km
- Assist Level 5: 50 km
Elligible for the PEI 500$ E bike incentive.
